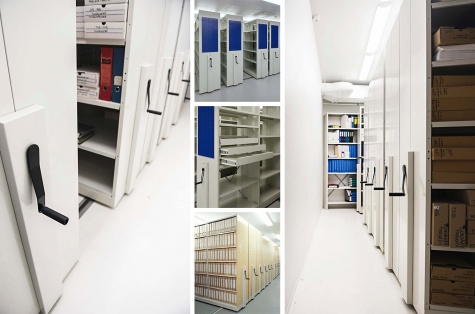

The PUNTA mobile shelf system is a practical solution for archives, offices and general use. This system makes it even possible to double the amount of storage space compared to conventional stationary shelving units. As a rule, a mobile shelving system can be comprised of 1-10 rail-mounted shelving units, depending on the load and space between two stationary shelves, and one aisle that opens at the desired point by either turning a crank or pulling on a handle. For heavily loaded shelving units longer than 3 meters, we recommend the use of cranks in order to make it easier to move the units. Depending on the type, the load-bearing capacity of individual shelves ranges from 80-200 kg. The load-bearing capacity of shelving units is 2400-4800 kg, depending on the number of rails used. The shelving unit consists of a base carriage and the TH steel shelf mounted on it. The carriage sliding and control wheels that run on the rails are fitted with ball bearings. There are 2-4 rails, depending on the length of the carriage. The rails can be either surface or flush mounted. The stationary shelf is a TH steel shelf with smooth end walls. The standard color for mobile shelving units is RAL 9002 gray-white; fittings are galvanized. Shelves and their individual parts (e.g., end panels) can also be ordered in other color shades. Standard height: 1634 mm, 2000 mm, 2366 mm and 2737 mm. Standard depth: 300 mm, 400 mm, 500 mm and 600 mm; 250 mm available by special order. Standard width: 800 mm, 1000 mm and 1200 mm. Carriage length: Up to 7 meters. Shelves can be adjusted in 61 mm increments. Shelf interval of 331 mm (file folder height) when evenly spaced. Get in touch, and we will help create the solution that best fits your needs. | |
|
Mobile shelves
| |
|
| |
|
